DC Link Capacitors

ADC-CP series

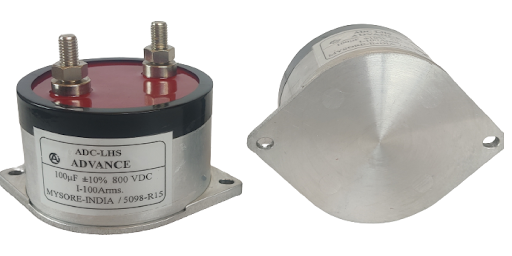

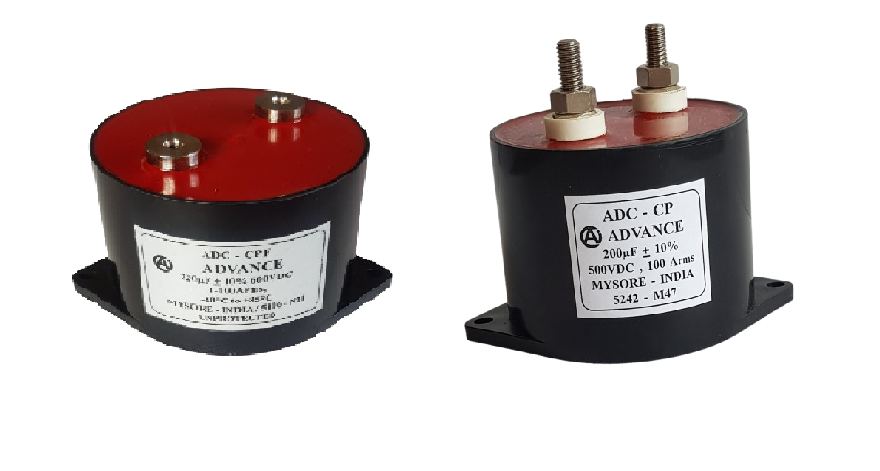

Advance medium power film capacitors are specifically designed for DC filtering and low reactive power applications.

Technical Specifications:

Capacitance Range 20µF to 200µF
Rated Voltage range (Vn) 500Vdc to 1000Vdc
Tolerance ±5%, ±10%
Dielectric Metallised Polypropylene Film
Casing Plastic case with mounting clamp & 2 holes
(self-extinguishing FR grade, optional) filled with
thermosetting epoxy resin UL94V0
Terminals (2) Nickel / Tin Plated M8 Brass Screw terminals with Bush
-Max Torque-10Nm
Test voltage between terminals(10s) 1.3 x Vn DC
Insulation withstanding voltage
between shorted terminals & body
4kVrms , 50Hz
ESR As low as 0.7mΩ
Temperature Range -40°C to +85°C
Climatic Category 40/85/21
RoHS Compliance Yes
Protection Protected / Unprotected

ADC-CA Series

Advance DC link film capacitors are designed for UPS, Wind and Solar Inverter applications.

Technical Specifications:

Capacitance Range 140 µF to 700 µF
Rated Voltage Range Upto 1320 Vdc
Tolerance ±5%, ±10%
Dielectric Metallised Polypropylene Film
Casing Aluminium case with M12 bottom stud (Max Torque-12Nm)
filled with thermosetting epoxy resin UL94V0
Terminals (2) Type CAF- Nickel / Tin Plated M6 Brass Internal thread
-Max Torque-8Nm
OR
Type CAS -Nickel Plated Brass Screw terminals with Ceramic Bush
- Max Torque -10Nm
Test voltage between terminals(10s) 1.3 x Vn DC
Insulation withstanding voltage between
shorted terminals & case (60S)
2.5kVac, 50Hz
ESR As low as 0.7mΩ
Temperature Range -40°C to +85°C
Climatic Category 55/60/56
RoHS Compliance Yes
Protection Protected / Unprotected

ADC-RP Series

Advance DC link through-hole capacitors suitable for battery chargers, UPS, driver circuits and Solar inverters.

Technical Specifications:

Capacitance Range 4.7 µF to 60 µF
Rated Voltage Range 400Vdc to 1100Vdc
Tolerance ±5%, ±10%
Dielectric Metallised Polypropylene Film
Casing Plastic case with (self-extinguishing FR grade, optional)
filled with thermosetting epoxy resin UL94V0
Terminals Tin Plated Copper Lead of 0.8 / 1.0 / 1.2mm Dia
-2 Pins OR 4 pins configuration available
Test voltage between terminals(10s) 1.3 x Vn DC
ESR As low as 10mΩ
Temperature Range -40°C to +85°C
Climatic Category 40/85/21
Standard Reference IEC 61071
RoHS Compliance Available
Protection Protected / Unprotected

ADC-AR Series

Advance DC link Axial mounting type Capacitors suitable for Welding and Solar inverters.

Technical Specifications:

Capacitance 5µF to 400µF
Rated Voltage 400Vdc to 800Vdc
Tolerance ±5%, ±10%
Dielectric Metallised Polypropylene Film
Casing Axial Round with Yellow Wrap Tape
Terminals Brass/Copper Flange with Internal Threading
Temperature Range -40°C to +85°C
Climatic Category 40/85/56
