DZS Series Dual IGBT Snubber Capacitors ( NEW )

General Details :

  • Polypropylene Dielectric , Low Loss
  • Self- Healing
  • Flame Retardant UL94V0, RoHS compliant Housing
  • Series Construction , high dv /dt rating
  • Filled with thermosetting Resin / PU resin
  • Snubber / Thyristor Protection
  • High Pulse Applications
  • Low ESR
  • Voltage Ratings upto 2500Vdc
  • Tolerance ±5%, ±10%

Technical Specifications :

Capacitance Range 0.1µF+0.1µF to 2.0µF to 2.0µF
Temperature Range -55°C to +100°C
Insulation Resistance 5000 MΩ * µF
Test Voltage Between Terminals 1.5 x rated DC voltage for 10S
Test Voltage Between Terminals & Case 3Kvac, 50Hz for 10S
Climatic Category 40/85/56
Terminals Tinned Copper Clips

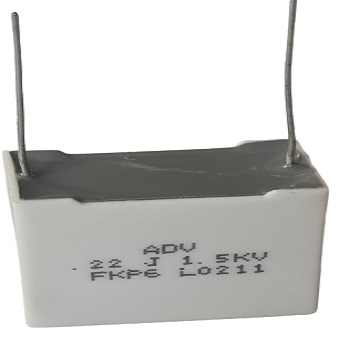

FKP-6M Series IGBT Snubber Capacitors ( NEW )

General Details :

  • Non Polar
  • Self- Healing
  • IGBT module protection
  • Low ESR, ESL
  • Low Losses
  • Thyristor protection
  • High Insulation Resistance
  • Suitable for High Frequencies
  • Voltage Ratings upto 2500Vdc
  • High pulse applications

Snubbers are high peak current capacitors used in power semiconductor circuits for enrage conversion and used to suppress or attenuate high voltage peaks to protect semiconductor devices.

Advance snubber capacitors are made using internationally accepted Series Metallised Technology for self-healing property. Advance snubber capacitors offer high load capability with double sided metallization (type MKP) and /or film/foil metallization (FKP). Aluminium foil electrodes are used for high peak current capacities. Capacitor elements are non-inductive and encapsulated in a plastic box and potted with epoxy resin for environmental protection.

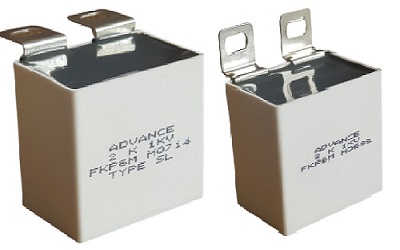

TYPE: FKP-6M IGBT Module direct mounting type

Technical Specifications :

Capacitance Range 0.1µF to 3µF
Voltage Ratings up to 3000Vdc
Temperature Range -55°C to +100°C
Tan Delta 0.0005 at 1 KHz
Insulation Resistance 5000 MΩ * µF
Test Voltage Between Terminals 1.6 times rated dc voltage for 10 s
Test Voltage Between Terminals & Case 3 kVAC for 60 s
Climatic Category 40/85/56
Tolerance ±5%, ±10%, ±20%
Terminals Tinned Copper Clips
