Advance Conduction Cooled Capacitors

Advance Conduction Cooled Capacitors are designed for high voltage, high current applications such as Resonant power supplies, Induction heating tank circuit etc.

CC-1 Series

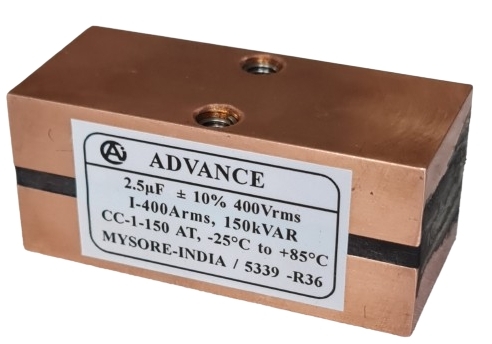

CC-1 series Conduction Cooled Capacitors are high current, high power resonant capacitors with Copper blocks as the terminals.

Technical Specifications:

Capacitance 0.025µF to 5µF
Rated Voltage up to 1000Vrms
Dielectric Metallised Polypropylene Film
Max current up to 1200 Arms
Working frequency up to 1414kHz
Max Power Rating up to 600KVAR
conduction-cooled-capacitors

AC-1 Series

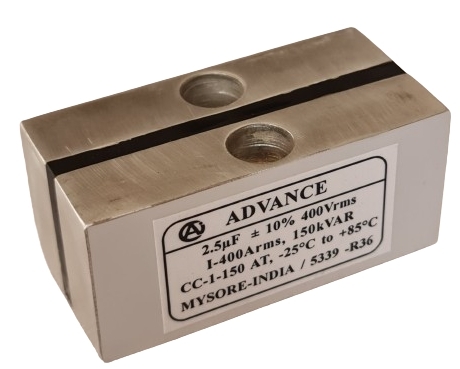

AC-1 series Conduction Cooled Capacitors are high current, high power resonant capacitors with Aluminum blocks as the terminals.

Technical Specifications:

Capacitance 0.05µF to 2.4µF
Rated Voltage upto 1200Vrms
Dielectric Metallised Polypropylene Film
Max current up to 600 Arms
Working frequency up to 994kHz
Max Power Rating up to 300KVAR
conduction-cooled-capacitors

CC-2 Series

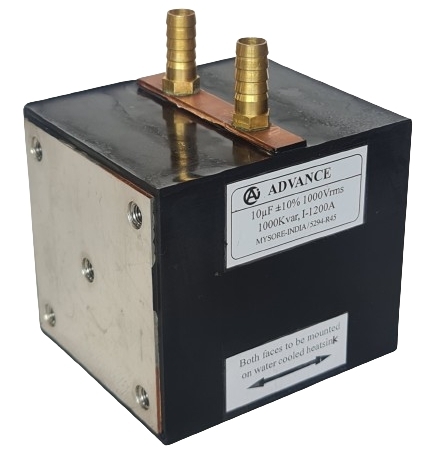

CC-2 series Water + Conduction Cooled Capacitors are high current, high power resonant capacitors with Copper plates as terminals along with water cooling connections.

Technical Specifications:

Capacitance 5.0 µF to 20µF
Rated Voltage up to 1200Vrms
Dielectric Metallised Polypropylene Film
Max current up to 1700 Arms
Working frequency up to 39kHz
Max Power Rating 1000KVAR
conduction-cooled-capacitors

CC-3 Series

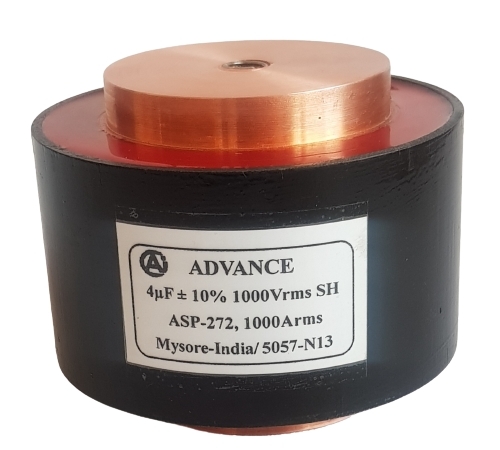

CC-3 series conduction cooled capacitors are available in Fibre Glass tubes end filled with epoxy resin and copper flange terminals

Technical Specifications:

Capacitance 3µF to 65µF
Rated Voltage upto 1200Vrms
Dielectric Metallised Polypropylene Film
Max Current upto 1200 Arms
Max Power 1000 KVAR
Working Frequency upto 60kHz
conduction-cooled-capacitors

CC-4 Series

CC-4 series conduction cooled capacitors are available in Fibre Glass tubes end filled with UL94-V0 epoxy resin and copper flange terminals with Water cooling Copper tubes( 4 on each side/flange) for superior cooling. Due to the water cooling it is ideal for high power, medium frequency application like Induction Heating, Medical devices, Heat treatment, EV charging etc.

Technical Specifications:

Capacitance 3µF to 45µF
Rated Voltage upto 1200Vrms
Dielectric Metallised Polypropylene Film
Max Current upto 1200 Arms
Working Frequency upto 60kHz
conduction-cooled-capacitors

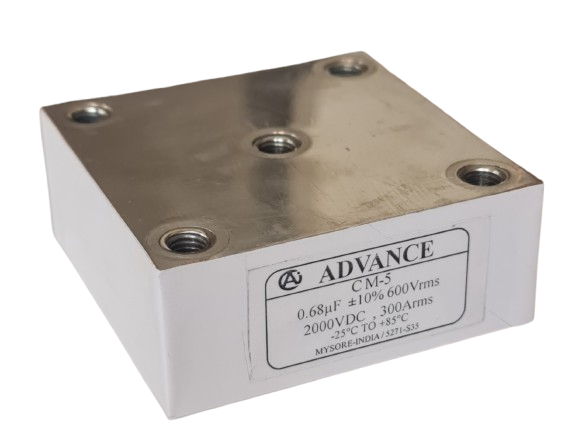

CC-5 Series

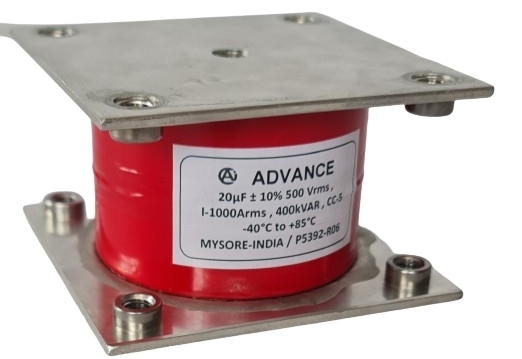

CC-5 Series conduction cooled capacitors have direct mounting option with flat rectangular electroplated copper plates.

Technical Specifications:

Capacitance 0.1µF to 5µF
Rated Voltage upto 1000Vrms
Dielectric Metallised Polypropylene Film
Max Current upto 1000 Arms
conduction-cooled-capacitors
