PCB Mountable AC & DC Capacitors
Dielectrics available :
- Metallised Polyester Film Capacitors
- Metallised Polycarbonate Film Capacitors
- Metallised PPS Film Capacitors
- Metallised Polypropylene Film Capacitors
General Specifications :
- Non-Polar
- Epoxy Resin Sealed
- Non-Inductive
- Self–Healing
- Low ESR
- High Stability
- Humidity, Shock & Vibration Proof
Advance Capacitors are well known for Quality and Reliability. Advance can design and manufacture of Metallised Polypropylene Film Capacitors, Metallised Polyester Film Capacitors and Metallised PPS Film Capacitors as per customer requirements and specifications. Metallised Polyester & Metallised PPS Film Cpacitors are available Axial Round, Axial Oval and Radial Box form factors processed as per JSS 50204 specifications. Metallised Polypropylene Capacitors are available in Through-hole Mounting, Chassis and Panel Mounting types as per IS and IEC standards.
Applications :
- Instrumentation
- Meter Damping
- Communications
- Filter Bypass
- R-C Circuits
- Computers, Switching
- Input to High Impedance Circuits
- Replacement for Paper Capacitors
Styles :
- Radial Box Type (MF, CMF, SMF, MKP-4)
- Axial Round Type (MWF, CMWF, SMWF, MKP-5)
- Axial Flat (Oval) Type (MWOF, CMWOF, SMWOF, MKP-5)
Reference Standards :
- JSS 50204
- MIL-C-27287
- BS 2011
- IEC 60384
- IS 9256

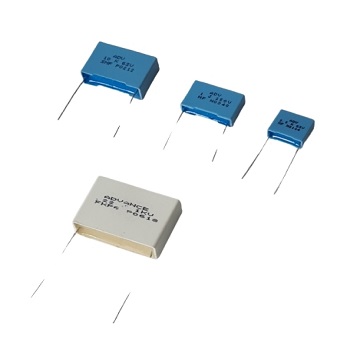

Radial Box type

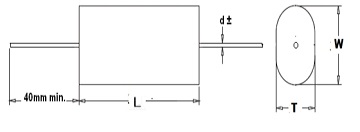

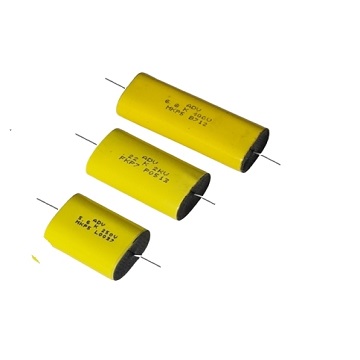

Axial Flat (Oval) type

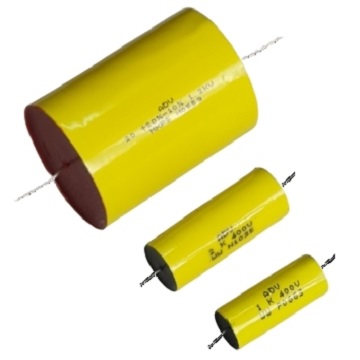

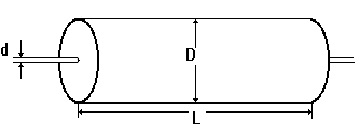

Axial Round type
Technical Specifications :
| Capacitance Range | 0.00047µF to 100µF |
| Rated Voltage | 50Vdc to 2000Vdc 50Vac to 2000Vac |
| Tolerance | ±1%, ±2%, ±5% |
| Terminals | Tinned Copper wires |
